Circular Sample Cutter TF513A/C/D

A circular Sample Cutter or circular sampler, a fabric sample cutting machine, is a kind of equipment used to cut all kinds of wool, cotton, chemical fiber, knitting, and other fabric round samples. This GSM Cutter cuts fabric samples in various dimensions, such as 100cm2 for the Martindale test. The cutting pad is made of porous rubber, which allows GSM Round Cutter to cut into the base with complete safety. We are professional GSM cutter manufacturers. Our fabric gsm cutter price is reasonable.

Enquiry

Description

Application

Fabric Circular Sample Cutter / Gsm Cutter, Fabric Swatch Cutter has a wide range of applications, suitable for textile, paper, packaging, testing, and scientific research industries, this instrument is suitable for cutting a variety of wool, cotton, chemical fiber, knitting, and other fabric round samples. The circular sample cutter cuts fabric samples in various, such as 100cm2 for the Martindale test. Cut accurate fabric circular samples with smooth edges by drawing action even difficult materials such as fabric, thin films, tissue paper, corrugated cardboard, and synthetic leather can be cut by the sample cutter conveniently.

As a fabric gsm checking machine, The cutting pad is made of porous rubber, which allows the sample cutter to cut into the base with complete safety.TESTEX provides a good quality fabric swatch-cutting machine for you.

How to cut the samples by using a Circular Sample Cutter?

The fabric to be cut flat on the rubber mat, the disc sampler on the fabric, pull out the locking device on the sampler, rotate about 90 degrees, hold the outer cover with one hand, hold the corrugated hand wheel with the other hand, and apply some pressure, then rotate the corrugated hand wheel clockwise (the angle of rotation is greater than 90 degrees), you can cut the round sample. Samplers use that locking device and rotate to the original position so that the blade can not be exposed to avoid injury to hands and other items.

Cautions of using a Circular Sample Cutter

1. the blade of this instrument blade is quite sharp, must need to complete the operation on the rubber pad.

2. cutting objects can not have metal objects, to prevent the blade from breaking.

3. The blade is a finely ground sampling blade, when replacing the blade need to pay attention to the position of the blade, the blade is easy to break, and the blade on the cutting material is thinner.

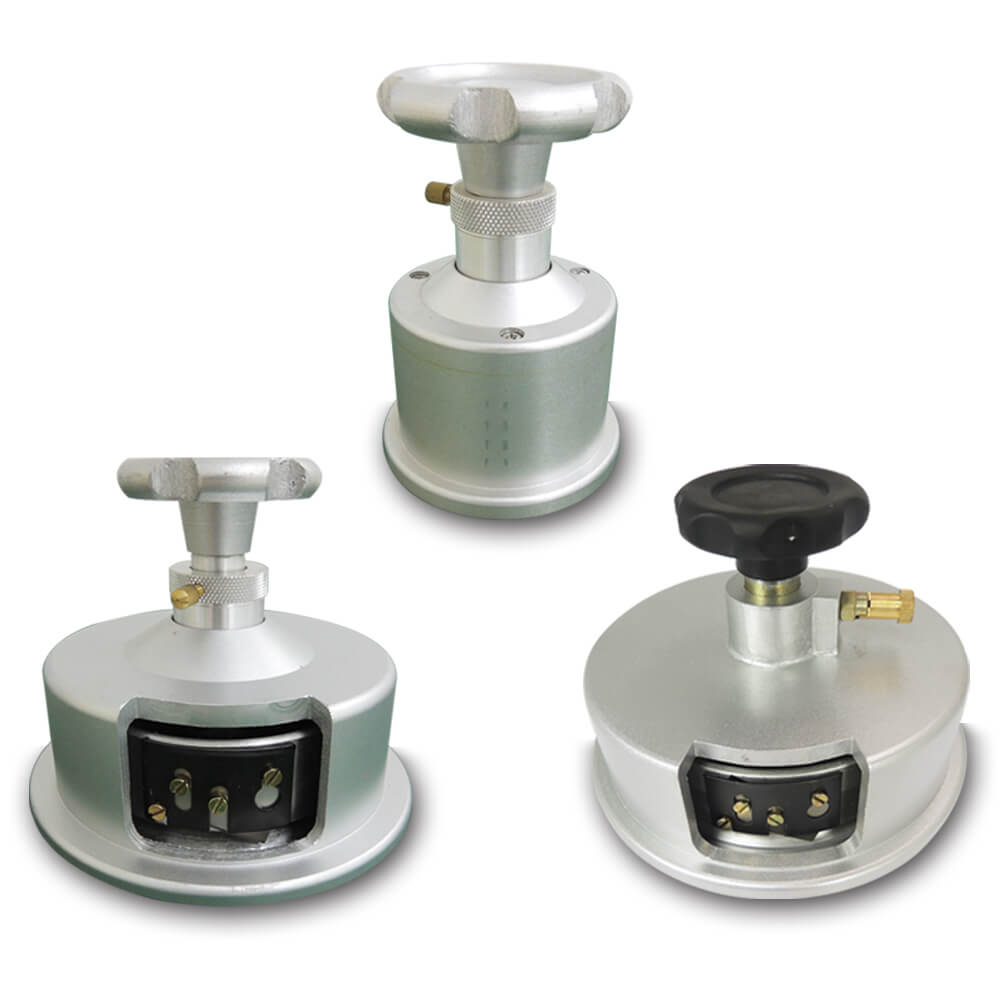

Models of Fabric Sample Cutter

  • TF513A Circular Sample Cutter — Dia. 113mm/100cm² /–For European Fabric Yield System
  • TF513C Circular Sample Cutter — Dia. 38mm/12cm² — For Martindale Abrasion and Pilling Tester
  • TF513D Circular Sample Cutter — Dia. 140mm/154cm² –For Martindale Abrasion and Pilling tester

Standard Accessories

subplate

Optional Accessories

subplate

blade

Weight

TF513A:1.5kgTF513C:0.6kgTF513D:1.8kg

Dimensions

TF513A: Ф160 x 120mm

TF513C: Ф90 x 120mm TF513D: Ф180 x 120mm

A circular Sample Cutter is usually used in collocation with Fabric Scale.

Fabric Scale TF120








    Please prove you are human by selecting the cup.

    9 reviews for Circular Sample Cutter TF513A/C/D

    1. Mittie Kimbral

      I am usually to blogging and i genuinely appreciate your site content. This content has really peaks my interest. I am going to bookmark your internet site and keep checking choosing info.

    2. Serina Sayed

      Been looking for this article for long time ago and finally found here. thanks for sharing this post. appreciate!

    3. martin d

      handy tools for cut circle samples for some testing

    4. Frank Willard

      Nice Kit. Fit the description.

    5. Don Kit

      Nice.

    6. Celeste Holt

      The machine has good performance in testing.

    7. Lorraine Minnie

      I like this manufacturer. Soon come back.

      • testextextile

        Look forward to your visit!

    8. Ella Paul

      пока не используется

    9. Georgia Poe

      thx for the delivery g

    Leave a customer review

    What is a Fabric Weight Cutter?


    GSM machine, also known as fabric weight GSM, is mainly used in textile fabrics, leather, copper foil, glass fiber and other industries, used to measure the weight of product unit area. At present, some people call the fabric sampler cutter, some call the sampler cutter and the electronic balance together.

    Why do you Need a Fabric Weight Circular Cutter?


    In the process of fabric production, various tests are needed. In order to the consistency of the test standards and reduce the error of the test, we need deal with the test samples in a unified way by gsm fabric cutter. The GSM cutter and scale are used together, according to the fabric gsm cutter calculation, we can get the test samples suitable for us. The fabric punch and scale is a necessary testing instrument.

    Instrument Operation


    1 Lay the fabric to be cut flat on the GSM cutter pad, place the disc sampler on the fabric, pull out the locking device on the sampler, rotate about 90 degrees. Hold the outer cover in one hand, hold the handwheel in the other hand, and apply certain pressure, then rotate the handwheel clockwise (the angle is greater than 90 degrees) and cut the round sample.

    2 When the sample cutter is used, lock the device and rotate to the position so that the blade cannot be exposed to avoid danger.

    Notice


    1 The blade edge of this instrument is sharp, do not put your hand on the bottom to avoid injury during use.

    2 The sample should be cut on the GSM cutter pad, the instrument should be cleaned when not used and placed in the instrument box to avoid damage.

    3 If the blade is not sharp after a period of time, it is necessary to replace the blade.

    Test Result


    What is GSM in fabric? After taking the sample, weighing it on an electronic balance with an accuracy of 0.01g. After reading, the weight displayed is multiplied by 100 to be the weight of the sample of 1m². For example, the weight of the sample read by the electronic balance is 3.57g. then, The weight of the sample of 1m²(100 GSM fabric) is 357g.

    If you want to know more about GSM weight cutter machine price, or even more, please contact us.
