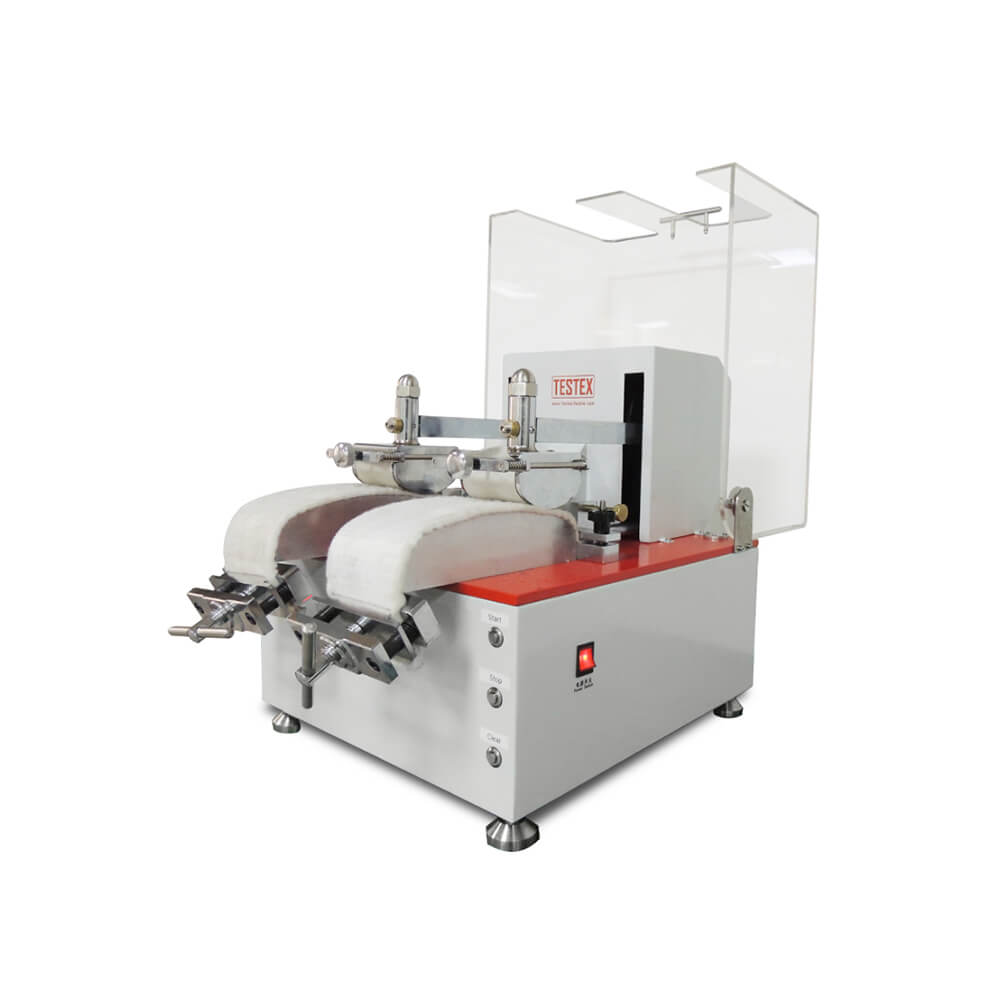

MIE Abrasion Tester TF216

Rated 4.50 out of 5 based on 2 customer ratings
(2 customer reviews)

MIE Abrasion Tester, to determine the wear resistance of textiles used for the automobile such as the interior material made of woven, knit, composite, coated fabrics by rubbing against an abrasive cloth.

MIE Abrasion Tester, to determine the wear resistance of textiles used for the automobile such as the interior material made of woven, knit, composite, coated fabrics by rubbing against an abrasive cloth.

This abrasion tester is mostly used for Renault and Peugeot.

Specifications

  • 2 x 2 test positions. Each pair of tests runs at the same time.
  • The 2 couples can perform tests independently or simultaneously.
  • Large Touch panel to program or monitor the duration of each test station test program for each cycle speed, etc.
  • Rubbing table 90 +/-1 width
  • Rubbing stroke 150mm
  • Rubbing speed 30 cpm

Power

220 /110 V50/60 Hz3 A

Weight

60 Kg

Dimensions

500 x 450x 480mm (L x W x H)

Standards

NF G 37 110Renault - PSA D44 1073RNRU 1073SNCF 284 F

Leave an inquiry for instruments, methods or any information.

We usually respond within 12 hours, or faster.

Test Range

This tester uses the standard wear fabric to carry on the reciprocating friction on the test fabric surface and causes the wear. It is suitable for checking the friction and wear strength of woven fabrics, knitted fabrics, composite materials, leather coated fabrics, and decorative materials.

Instrument Principle

Clamp one end of the sample on the gripper and the other end is loaded with 2~5kg to ensure that the fabric is flat on the felt plate and does not move. Reciprocating friction tests were carried out on each set of specimens with eccentric linkage mechanism and stopped after the preset test time.

Test Process

1 Install the instrument stable and there is no obvious vibration around it. Adjust the anchor bolt to make the bubble stop at the center of the horizontal bubble, and keep the tester horizontal.

2 Set the temperature to (20±15)℃ and the relative humidity is lower than 85% to ensure that there are no corrosive media and conductive dust in the surrounding environment.

3 Plug the tester into a 220V power supply and turn on the power switch.

4 Press the “Reset” key so that the timer displays “0000”. Set the value on the timer according to the friction time you need. Hold the rubbing head up on the rocker arm with the brace rod.

5 Prepare the specimen according to the standard requirements. First, fix one end of the specimen to the friction table and tighten the handle; fix the other end to the clamp to fasten the specimen. Then press the friction head on the specimen in a naturally drooping state.

6 After removing the cone pin and lowering the brace rod, start to test. When the rubbing table moves back and forth and reaches the set time, the instrument automatically stops.

How to know the flexural stability of textiles? Through this article, I think you might have got some information. If you want to know more, please contact us. As a professional supplier of textile instruments, we are committed to continually improve the user experience, TESTEX Textile Testing Equipment is a reliable choice for testing textile quality.
